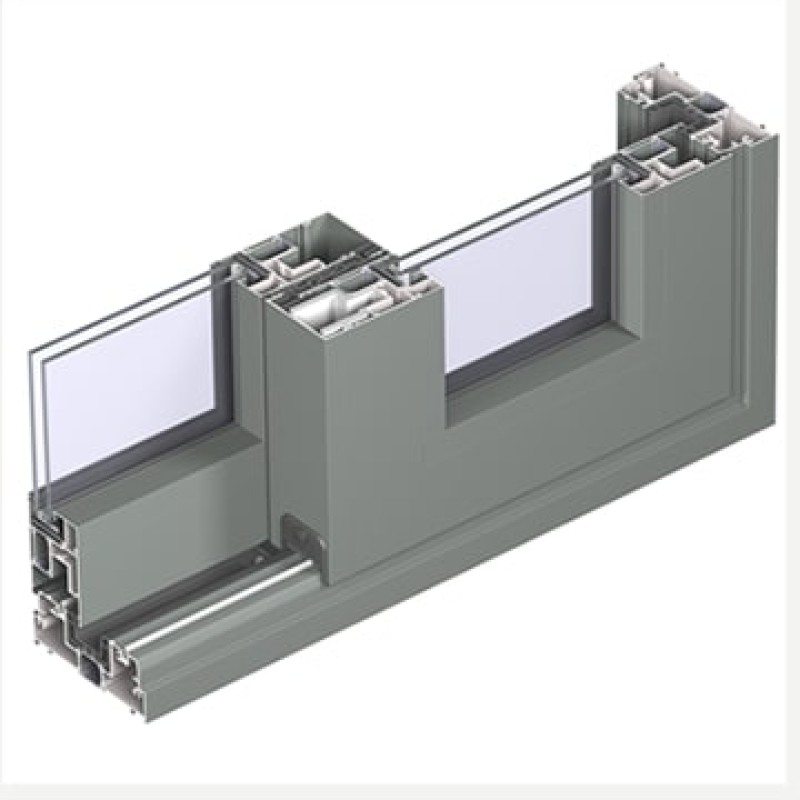

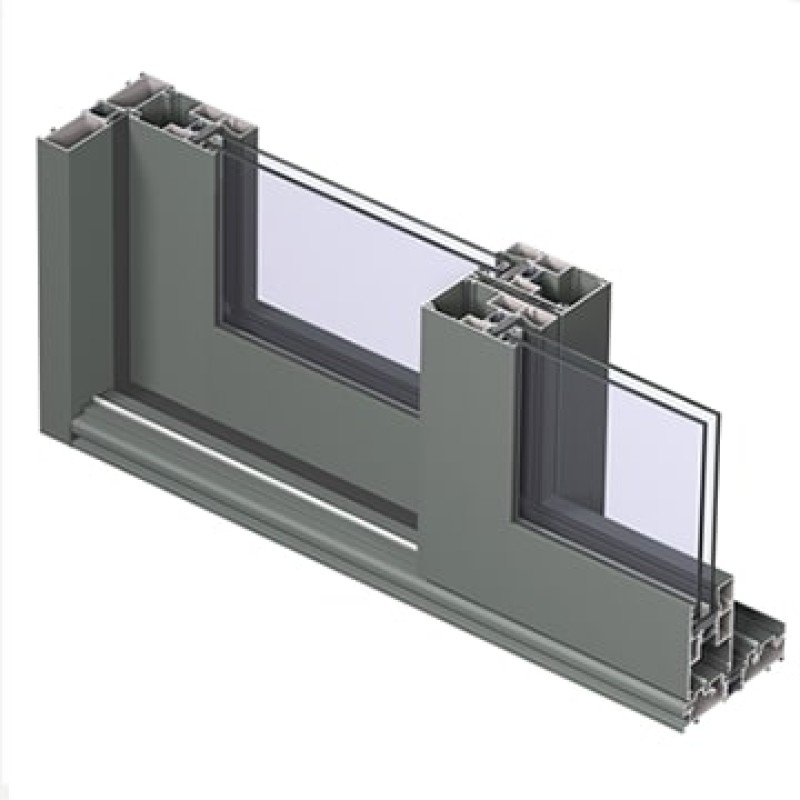

در-Sliding Element Concept Patio 130

Visible width threshold: 50 mm
Min. Visible width -profile: 76 mm
Visible width meeting section 4 doors: 194 mm
Max. height vent: 2700 mm
Max. width vent: 2600 mm
Overall system depth vent: 59 mm
Rebate height: 25 mm
Min. glass thickness: 4 mm
Max. glass thickness: 43 mm
Glazing method: Dry glazing with EPDM or neutral silicones
hermal break: Fibreglass reinforced polyamide strips
Visible height frame: 28 mm
Visible height threshold: 28 mm
Visible height vent: 94 mm
Visible height -profile: 76 - 154 mm
Visible height meeting section: 69 / 98 mm
Visible height meeting section 4 doors: 194 mm
Max. height element: 2700 mm
Max. weight element: 300 kg

Performance
Comfort
Air tightness max. test pressure: 4 (600 Pa)
Water tightness: E750 (750 Pa)
Wind load resistance: C4 (1600 Pa)
Acoustic performance: Rw (C; Ctr) = 35 (-2;-6) dB / 39 (-1;-3) dB, depending on glazing type dB

Safety
Burglar resistance: WK 2, RC 2/WK 2

Energy
hermal insulation (Uf): 2,35 W/m²K
