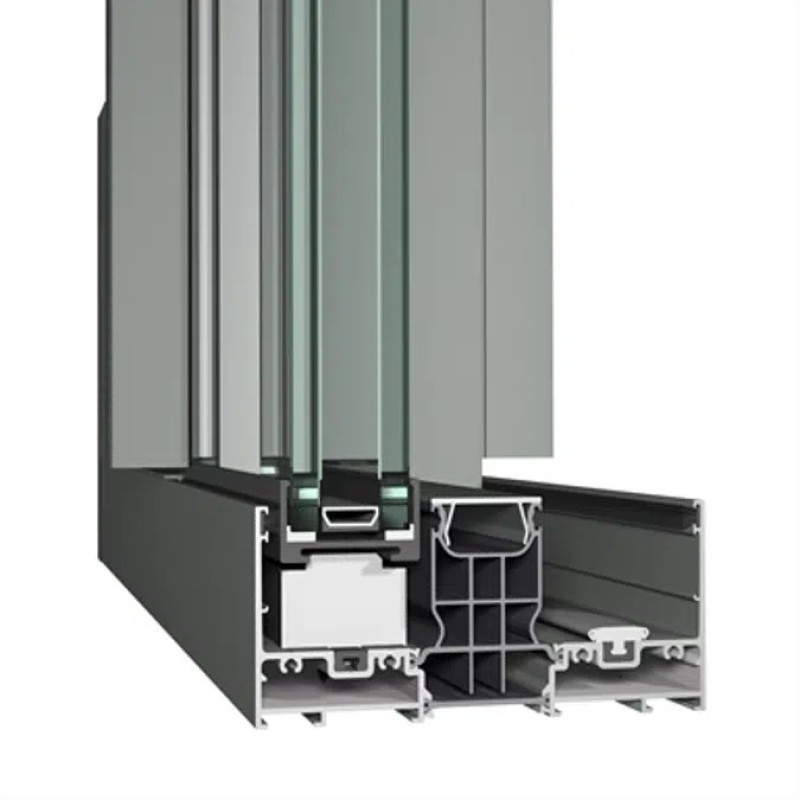

Sliding Element Hi-Finity Patio -Series2
افزودن به پروژه های شخصی|
LedBim Category: |
Door |
|
LedBim Sub Category: |
Sliding Doors |
|
UNSPSC name: |
Doors |
|
UNSPSC code: |
301715 |
|
Uniclass 1.4 Code: |
JL20 |
|
Uniclass 1.4 Description: |
Doors |
|
Uniclass 2.0 Code: |
SS-10-50-25-25 |
|
Uniclass 2.0 Description: |
Doors, Windows And Glazing Survey Systems |
Visible width meeting section35 mm
Max. height vent3500 mm
Max. width vent3500 mm
Max. weight vent (element)750 kg
Overall system depth frame147 / 179 mm
Overall system depth vent44 / 60 mm
Min. Glass thickness36 mm
Max. Glass thickness54 mm
hermal breakFibreglass reinforced polyamide strips
Performance
Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness9A (600 Pa)
Wind load resistanceB4 (1600 Pa)
Acoustic performanceRw(C;Ctr) = 43 (-1;-3) dB
Safety
Burglar resistanceRC 2/WK 2
Energy
hermal insulation (Uf)1,4 W/m²K
