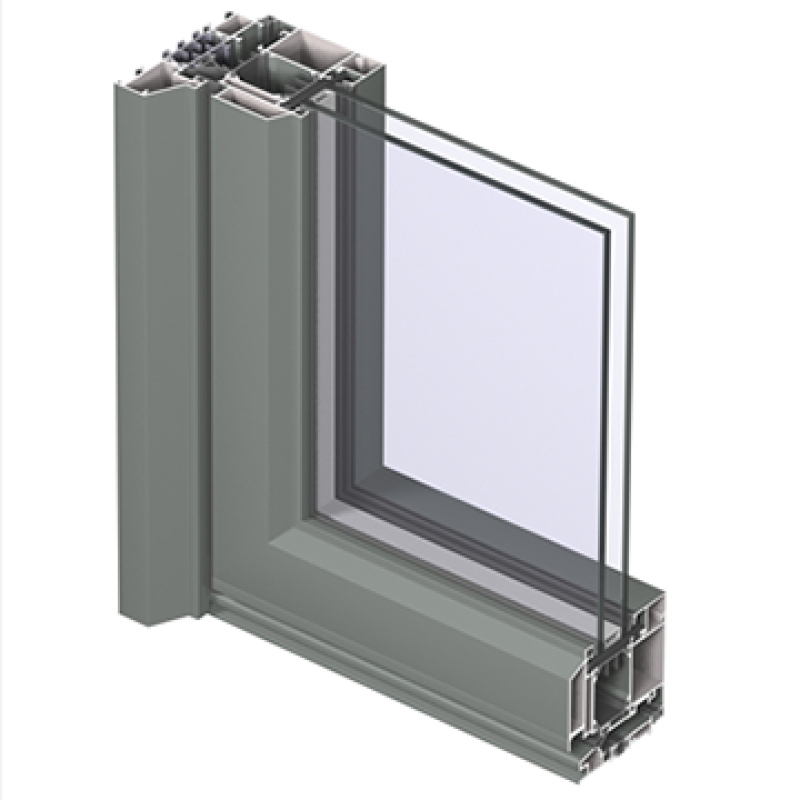

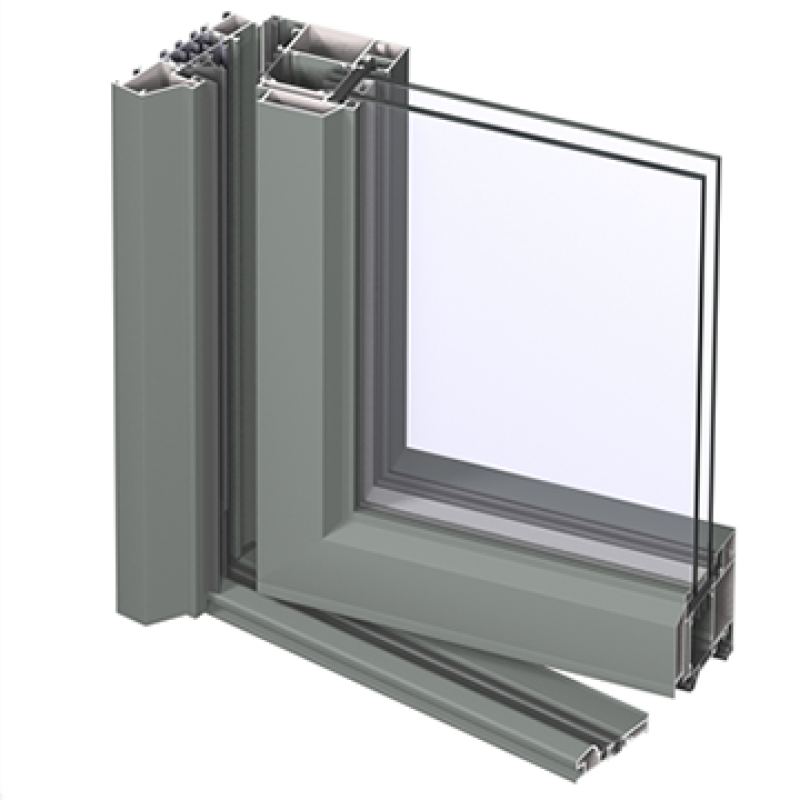

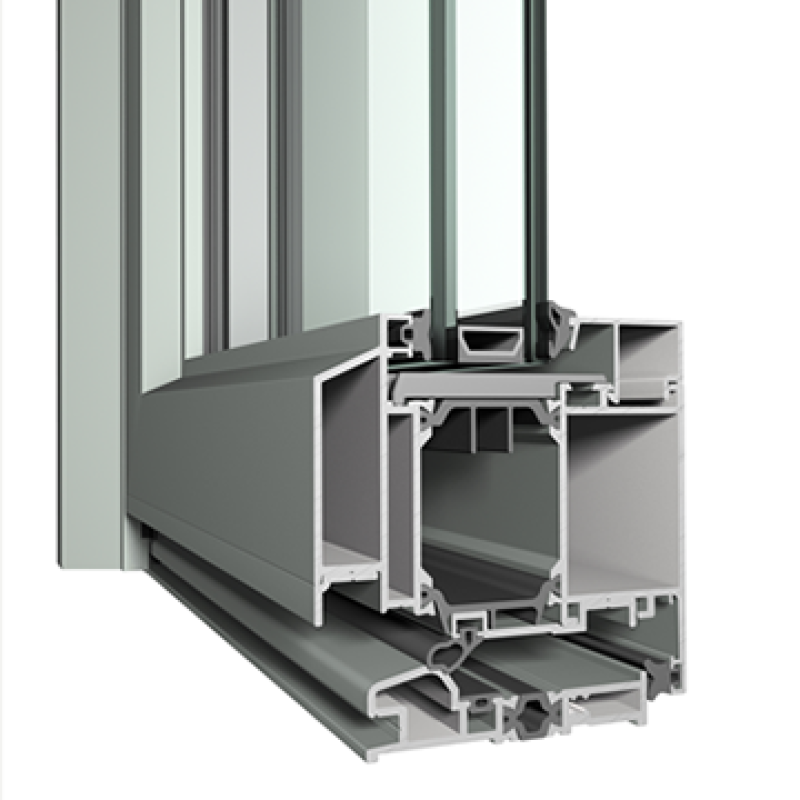

در-Window Door SL 38
افزودن به پروژه های شخصی|
LedBim Category: |
Door |
|
LedBim Sub Category: |
Swing Door |
|
IFC classification: |
Door |
|
UNSPSC name: |
Doors |
|
UNSPSC code: |
301715 |
|
Uniclass 1.4 Code: |
JL20 |
|
Uniclass 1.4 Description: |
Doors |
|
Uniclass 2.0 Code: |
SS-10-50-25-25 |
|
Uniclass 2.0 Description: |
Doors, Windows And Glazing Survey Systems |
|
NBS Reference Code: |
10-50-25-25 |
|
NBS Reference Description: |
Doors, Windows And Glazing Survey Systems |
Min. visible width frame: inward opening: 33,5 mm
Min. visible width vent: inward opening: 21,5 mm
Min. visible width frame-vent: inward opening: 67 mm
Min. visible width frame: outward opening: 29 mm
Min. visible width vent: outward opening: 60,5 mm
Min. visible width frame-vent: outward opening: 89,5 mm
Min. visible width -profile: 48 mm
Max. height vent: 2200 mm
Max. width vent: 1600 mm
Overall system depth frame: 99 mm
Overall system depth vent: 86 mm
Rebate height: 13,5 mm
Min. glass thickness: 16 mm
Max. glass thickness: 55 mm
Min. glass thickness vent: 16 mm
Max. glass thickness vent: 55 mm
Performance
Comfort
Air tightness max. test pressure: 4 (600 Pa)
Water tightness: 9A (600 Pa)
Wind load resistance: C4 (1600 Pa)
Acoustic performance: 45 dB
Safety
Burglar resistance: RC 2/WK 2
Fire resistance: EW 30
Energy
hermal insulation (Uf): 1,9 W/m²K
