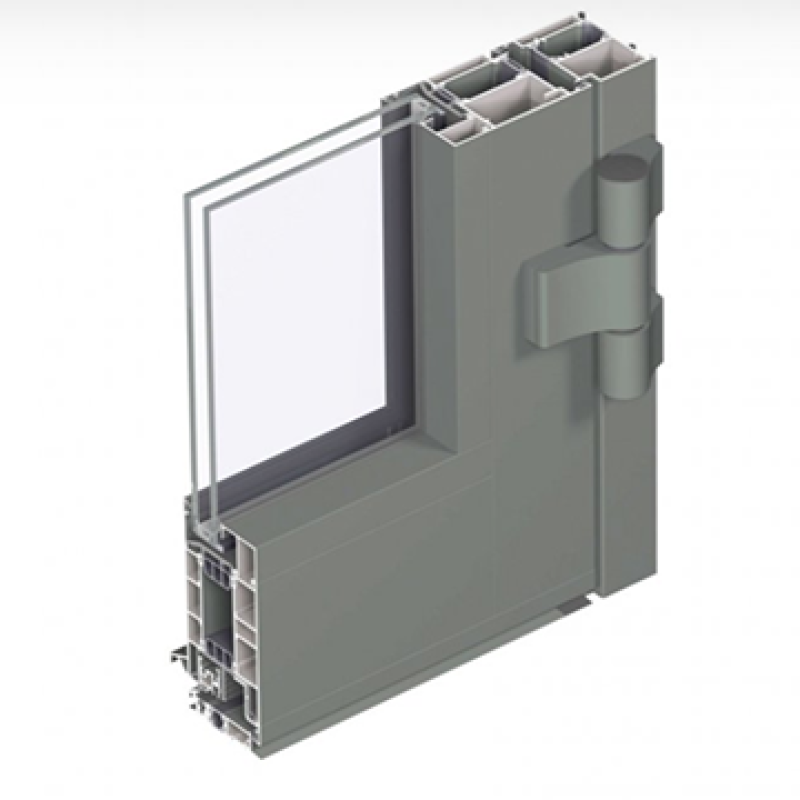

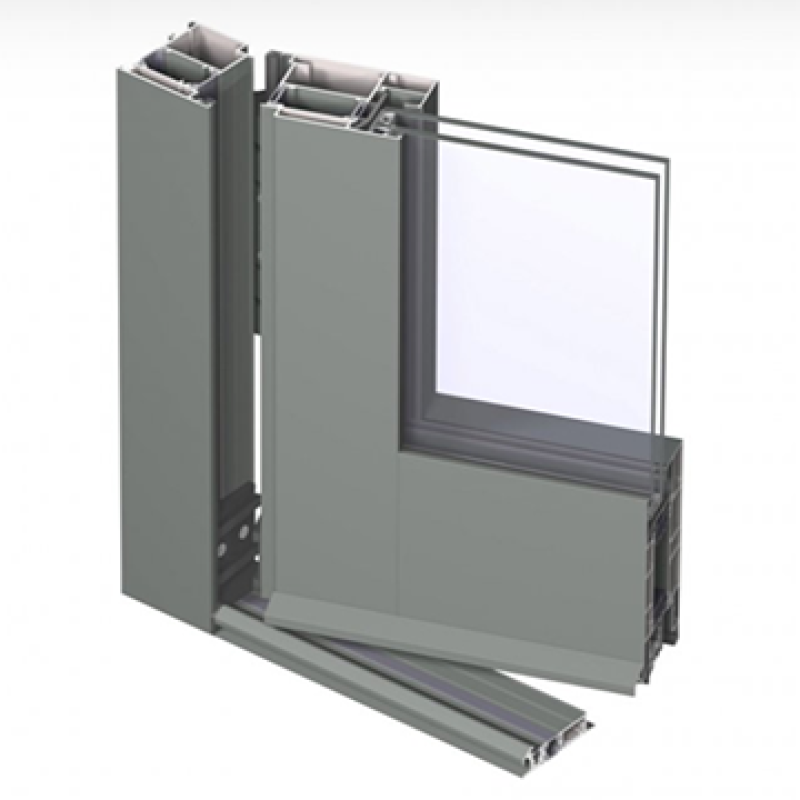

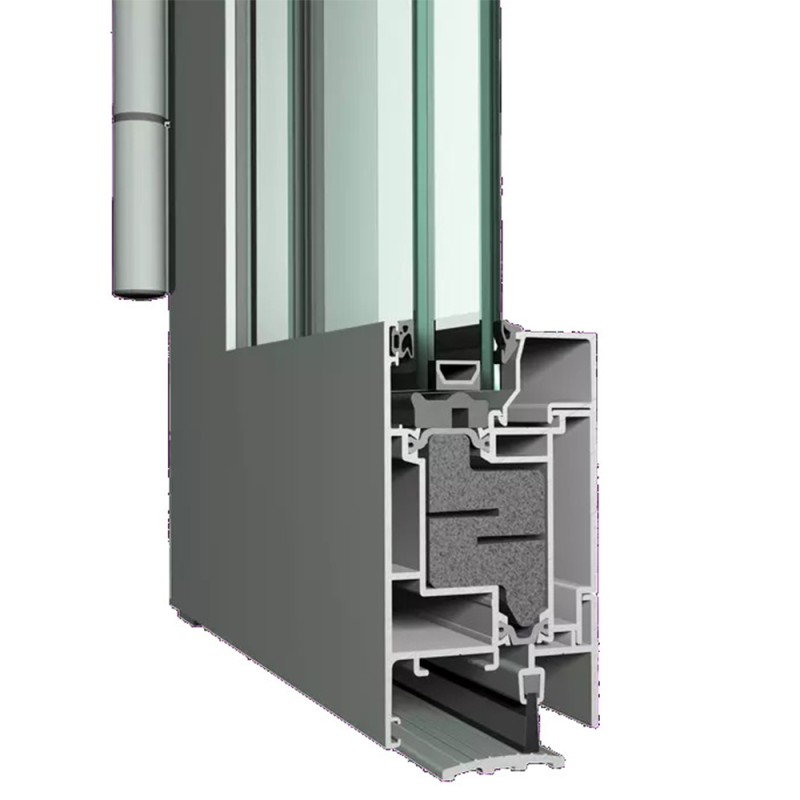

در-Door Eco System 50
افزودن به پروژه های شخصی|
LedBim Category: |
Door |
|
LedBim Sub Category: |
Swing Door |
|
IFC classification: |
Door |
|
UNSPSC name: |
Doors |
|
UNSPSC code: |
301715 |
|
Uniclass 1.4 Code: |
JL20 |
|
Uniclass 1.4 Description: |
Doors |
|
Uniclass 2.0 Code: |
SS-10-50-25-25 |
|
Uniclass 2.0 Description: |
Doors, Windows And Glazing Survey Systems |
|
NBS Reference Code: |
10-50-25-25 |
|
NBS Reference Description: |
Doors, Windows And Glazing Survey Systems |
Min. Visible width frame: inward opening67 mm
Min. Visible width vent: inward opening74 mm
Min. Visible width frame-vent: inward opening146 mm
Min. Visible width frame: outward opening42 mm
Min. Visible width vent: outward opening99 mm
Min. Visible width frame-vent: outward opening146 mm
Min. Visible width -profile70 mm
Max. height vent3000 mm
Max. width vent1400 mm
Max. weight vent (element)252 kg
Overall system depth frame50 mm
Overall system depth vent50 mm
Rebate height22 mm
Min. Glass thickness4 mm
Max. Glass thickness32 mm
Performance
Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness4A (150 Pa)
Wind load resistanceC2 (800 Pa)
Acoustic performanceRw (C; Ctr) = 40 (-2; -4) dB dB
Energy
hermal insulation (Uf)3,2 W/m²K
