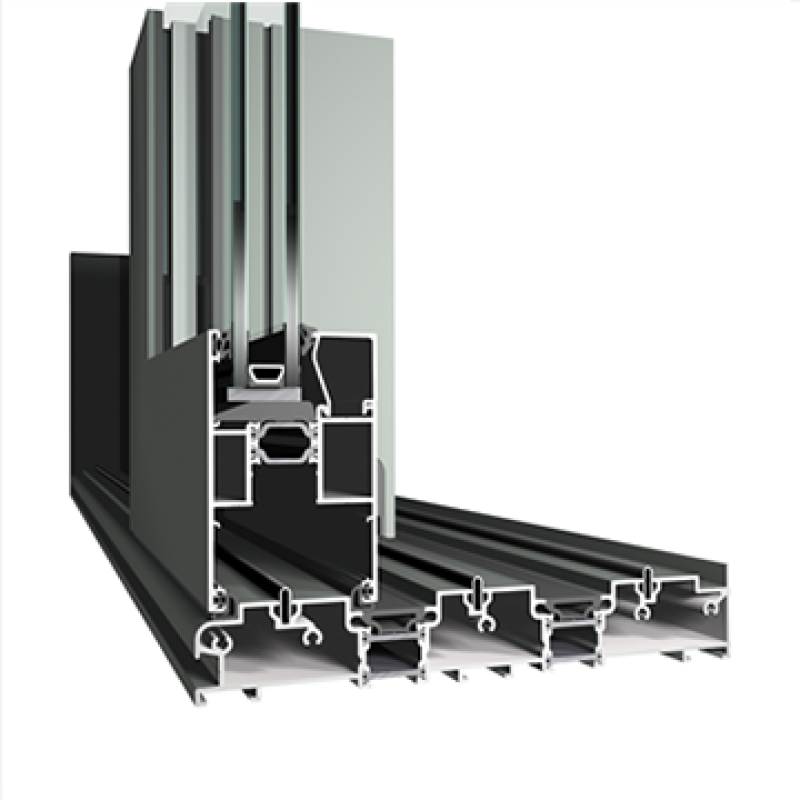

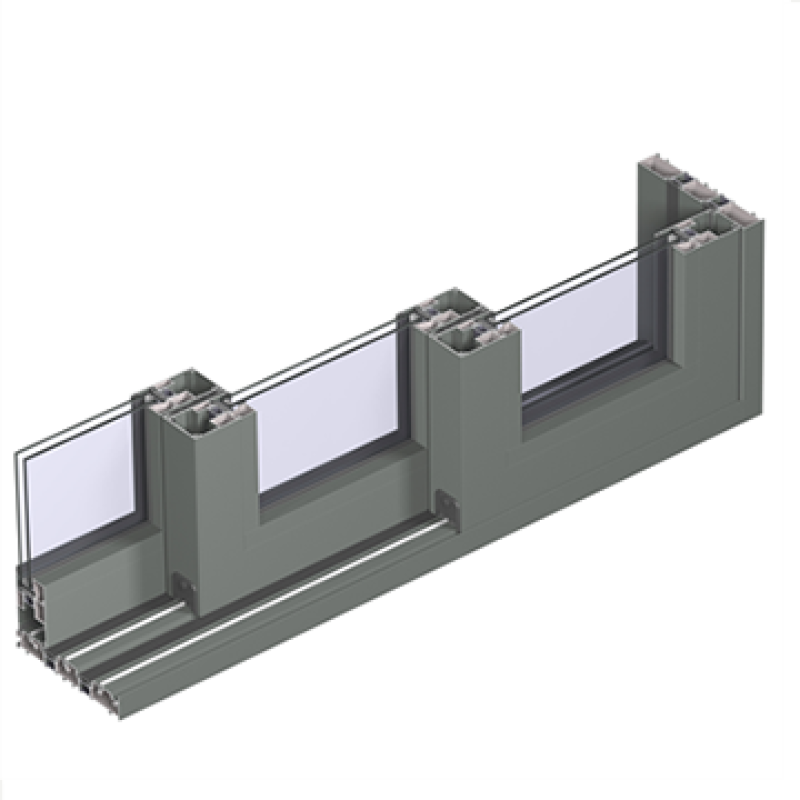

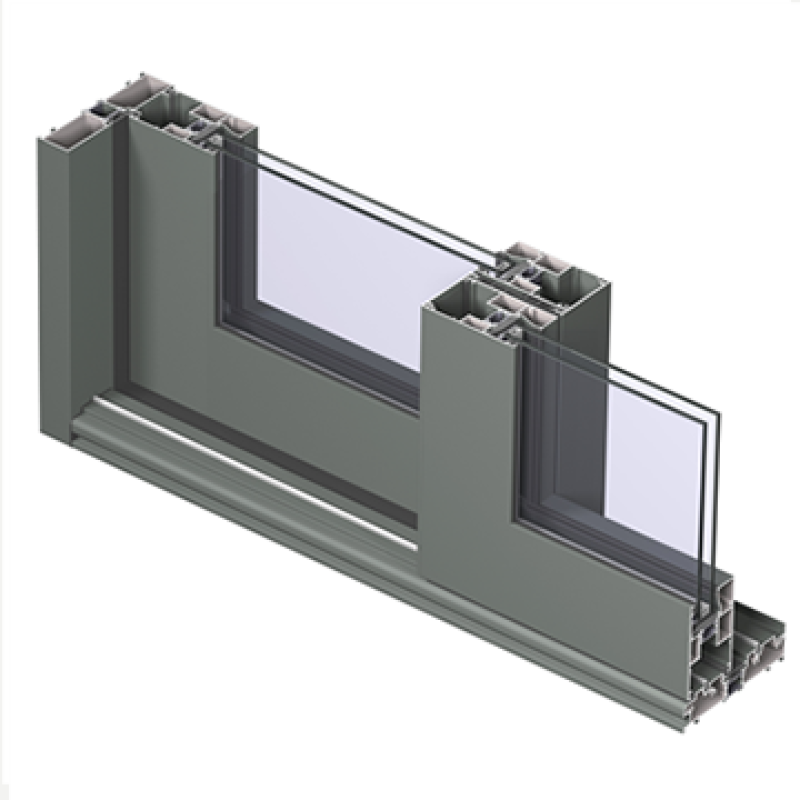

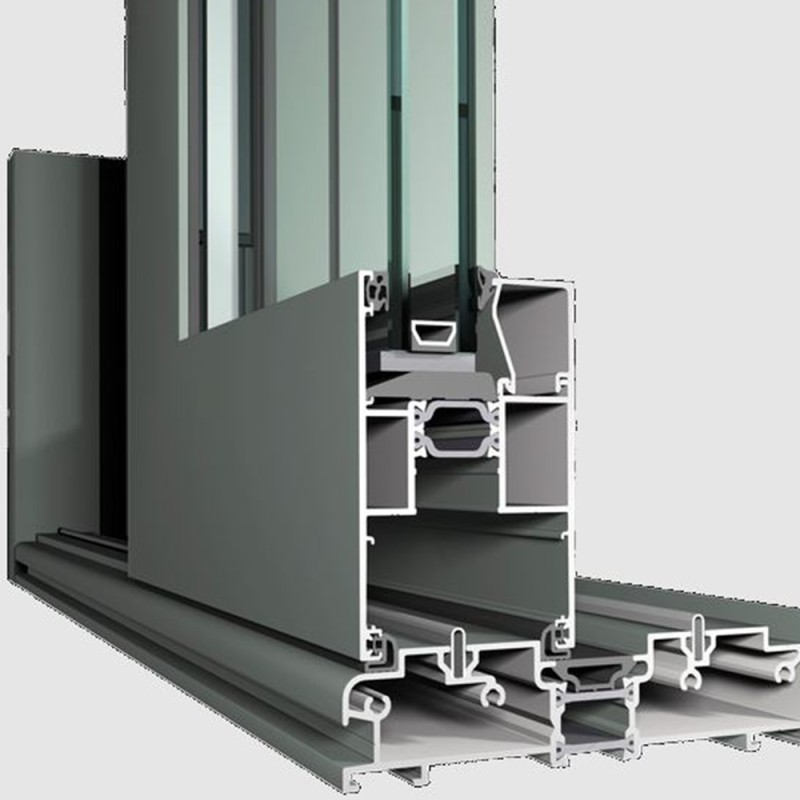

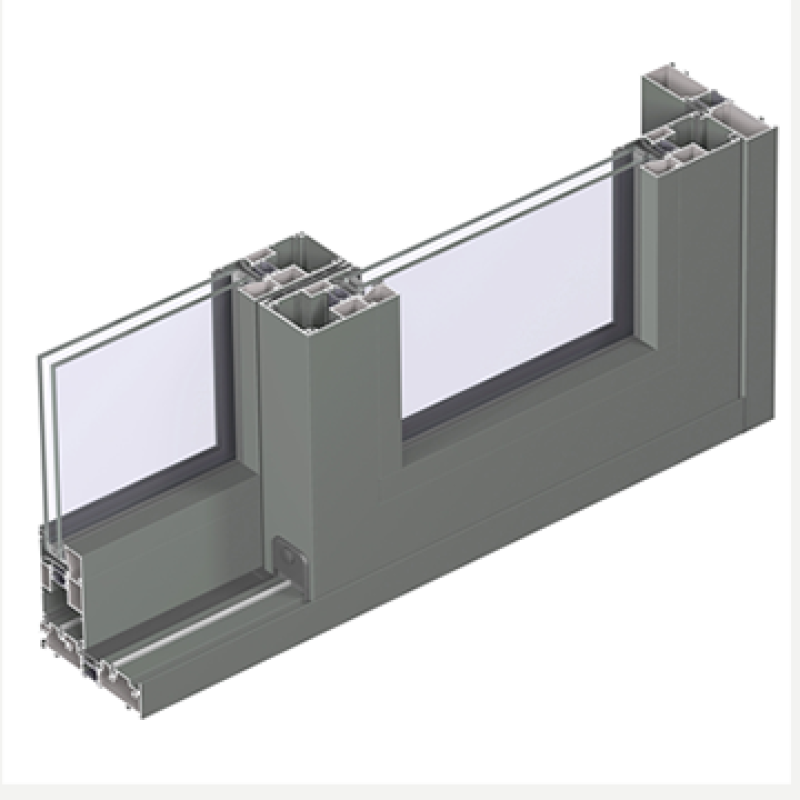

در-Sliding Element Concept Patio 130-LS
افزودن به پروژه های شخصی|
LedBim Category: |
Door |
|
LedBim Sub Category: |
Sliding Door |
|
IFC classification: |
Door |
|
UNSPSC name: |
Doors |
|
UNSPSC code: |
301715 |
|
Uniclass 1.4 Code: |
JL20 |
|
Uniclass 1.4 Description: |
Doors |
|
Uniclass 2.0 Code: |
SS-10-50-25-25 |
|
Uniclass 2.0 Description: |
Doors, Windows And Glazing Survey Systems |
Min. Visible width -profile76 mm
Visible width meeting section69 mm
Max. height vent2700 mm
Max. width vent2700 mm
Max. weight vent (element)400 kg
Overall system depth vent59 mm
Rebate height25 mm
Min. Glass thickness4 mm
Max. Glass thickness43 mm
Performance
Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightnessE750 (750 Pa)
Wind load resistanceC4 (1600 Pa)
Acoustic performanceRw (C; Ctr) = 34 (-1;-4) dB / 39 (-1;-3) dB, depending on glazing type dB
Safety
Burglar resistanceWK 2
RC 2/WK 2
Energy
hermal insulation (Uf)2,35 W/m²K
