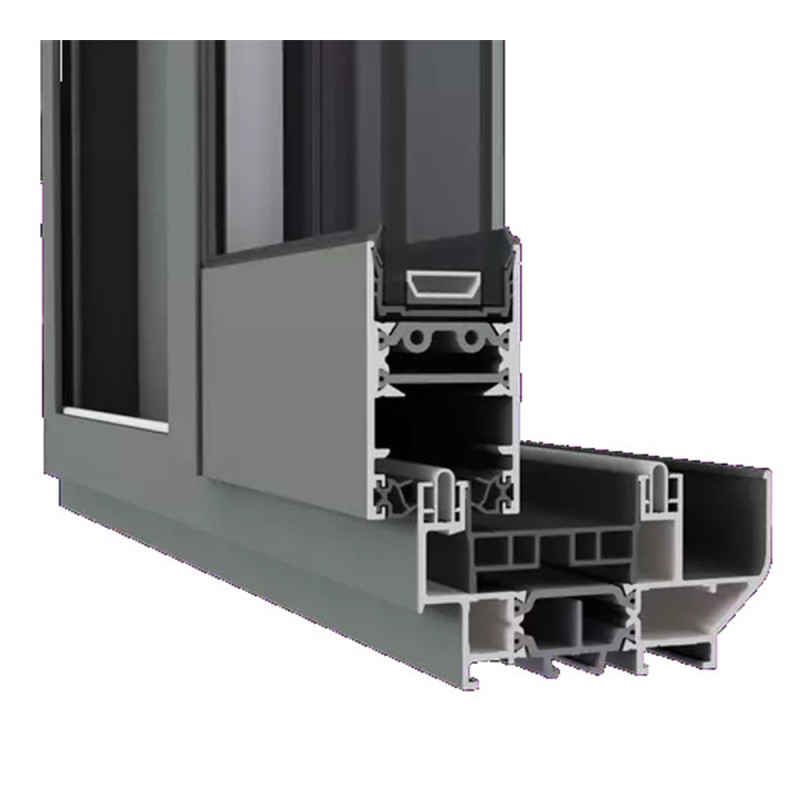

درب-Sliding Element Concept Patio 68
افزودن به پروژه های شخصی|
LedBim Category: |
Door |
|
LedBim Sub Category: |
Sliding Doors |
|
IFC classification: |
Door |
|
Uniclass 1.4 Code: |
JL20 |
|
Uniclass 1.4 Description: |
Doors |
|
Uniclass 2.0 Code: |
SS-10-50-25-25 |
|
Uniclass 2.0 Description: |
Doors, Windows And Glazing Survey Systems |
|
Uniclass 2015 Code: |
Ac_15_50_25 |
|
Uniclass 2015 Description: |
Doors, windows and glazing surveying |
|
NBS Reference Code: |
10-50-25-25 |
|
NBS Reference Description: |
Doors, Windows And Glazing Survey Systems |
|
CSI MasterFormat 2014 Code: |
08 10 00 |
|
CSI MasterFormat 2014 itle: |
Doors and Frames |
|
OmniClass Number: |
23-17 11 00 |
|
OmniClass itle: |
Doors |
|
CSI UniFormat II Code: |
B2030 |
|
CSI UniFormat II itle: |
Exterior Doors |
Visible width meeting section34 mm
Max. height vent2500 mm
Max. width vent1500 mm
Max. weight vent (element)200 kg
Min. Glass thickness28 mm
Max. Glass thickness36 mm
Performance
Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness7B (300 Pa)
Wind load resistanceC4 (1600 Pa)
Acoustic performanceRw (C; Ctr) = 31 (-1;-5) dB / 38 (-2;-5) dB, depending on glazing type dB
Safety
Burglar resistanceRC 2/WK 2
Energy
hermal insulation (Uf)2.51 W/m²K
